SHENMA
Gasoline & Diesel Power Tillers
Power Meets Versatility
⚙
Dual Fuel Options
Available in gasoline (196-225cc) and diesel (280cc) configurations to match your fuel availability and working conditions.
⚡
Full-Gear Transmission
Horizontal shaft full-gear drive with reversing clutch, dual forward gears, neutral and 1st gear for precise control.
🛡
Oil-Bath Filtration
Superior engine protection with oil-bath air filter — ideal for dusty field environments.
🌾
Wide Application Range
Orchard, tea garden, mulberry field, tobacco field, greenhouse, paddy field and dry land.

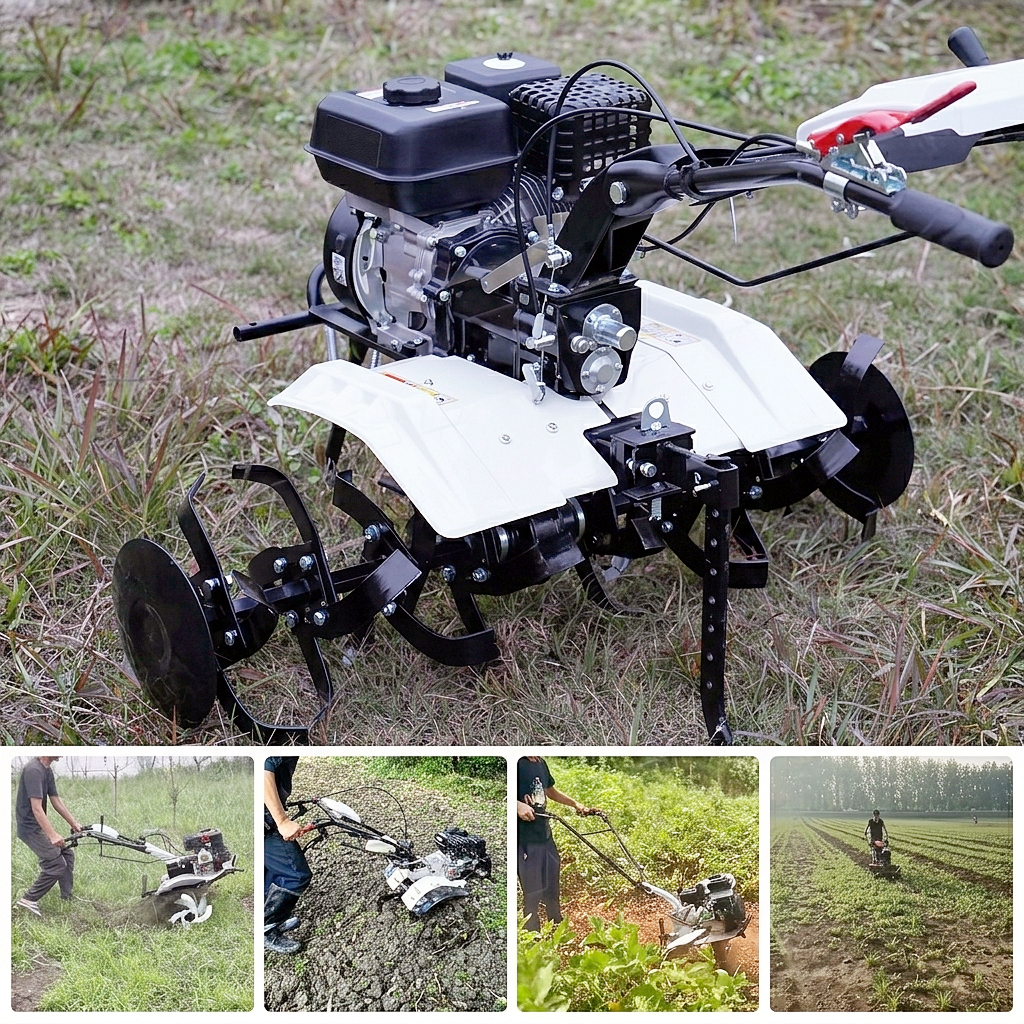

Built for Every Field
The Shenma power tiller is engineered for reliability across diverse agricultural conditions. Functions include rotary tillage, weeding, furrowing, earthing up, and field preparation.
Technical Specifications
Compare gasoline and diesel versions at a glance
| Parameter | ⚡ Gasoline Version | ⛽ Diesel Version |
|---|---|---|
| Model | 1WGQ4.0-100 / 1WGQ4.5-100 / 1WGQ5.0-100 | 1WGC4.05-90 / 1WGC4.1-105 / 1WGC6.3-135 |
| Engine Displacement | 196cc / 212cc / 225cc | 247cc / 296cc / 418cc |
| Engine Power | 5.5 hp / 6 hp / 7 hp | 5.2 hp / 6 hp / 9 hp |
| Engine Type | 4-stroke, air cooled | 4-stroke, air cooled |
| Rated RPM | 3600 r/min | 3600 r/min |
| Starting System | Recoil starter | Recoil / Electric Starter |
| Rated Output | 4.0 kW / 4.5 kW / 5.0 kW | 4.05 kW / 4.1 kW / 6.3 kW |
| Fuel Tank Capacity | 3.6 L | 2.5 L / 3.5 L / 5.5 L |
| Transmission | Gear drive | Gear drive |
| Gears | 2F + 1N + 1R | 1R + 0 + 2F |
| Clutch Type | Wet friction plate clutch | Wet friction plate clutch |
| Net Weight | 63 kg | 74 kg / 90 kg / 115 kg |
| Overall Dimensions | 150 x 62.5 x 75 cm | 150 x 62.5 x 75 cm |
| Tillage Width | 1000 mm (800 - 1050 mm) | 1000 mm (700 - 1350 mm) |
| Tillage Depth | 100 - 150 mm | 100 - 150 mm |
Where Shenma Works
🍎
Orchard
🍵
Tea Garden
🌱
Mulberry Field
🏭
Greenhouse
🌾
Paddy Field
☀️
Dry Land
⛽
Diesel Version
280cc diesel engine
3 Models: 4.05 / 4.1 / 6.3 kW
⛽
Gasoline Version
196cc / 212cc / 225cc engine
3 Models: 4.0 / 4.5 / 5.0 kW
Main Functions
Rotary TillageWeedingFurrowingEarthing UpField Preparation
Interested in the Shenma Series?
Contact us for detailed specifications, pricing, and availability for both gasoline and diesel versions.
